Digi XBee-PRO® 900HP

Digi XBee-PRO® 900HP

Long Range 900 MHz OEM RF Module

  • Superior LOS range of up to 28 miles with high-gain antenna
  • Simplified AT command set and advanced XBee API
  • Over-the-air firmware updates
  • Software-selectable channel mask for interference immunity
  • Advanced sleep modes: sleeping routers, pin sleep, cyclic sleep
  • Try these modules out with a XBee-PRO 900HP DigiMesh Kit

Overview

Digi XBee-PRO 900HP embedded modules provide best-in-class range wireless connectivity to devices. They take advantage of the DigiMesh® networking protocol, featuring dense network operation and support for sleeping routers, and are also available in a proprietary point-to-multipoint configuration. Supporting RF line-of-sight ranges up to 28 miles (with high-gain antennas), and data rates of up to 200 Kbps, these modules are ideal for extended-range applications requiring increased data throughput.

The Digi XBee-PRO 900HP requires no programming and can be configured easily using Digi’s free XCTU software or via a simplified AT command set. Digi XBee modules are pre-certified for use in multiple countries, further reducing development costs and time to market.

Digi XBee® modules are easy to use, share a common hardware footprint and are available in a variety of different protocols, enabling users to substitute one Digi XBee for another with minimal development time and risk.

Part Numbers & Accessories

DIGIMESH KITS
Digi XBee-PRO 900HP DigiMesh Kit (US/Canada) XKB9-DMT-UHP
Digi XBee-PRO 900HP DigiMesh Kit (Australia) XKB9-DMT-AHP
Digi XBee-PRO 900HP DigiMesh Kit (Brazil) XKB9-DMT-BHP
Digi XBee-PRO 900HP DigiMesh Kit (Singapore) XKB9-DMT-SHP
NORTH AMERICA
Digi XBee-Pro 900HP (S3B) Development Kit 32K Programmable XKP9-DMB0
XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, Wire Antenna, 200Kbps XBP9B-DMWT-002
XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, RPSMA, 200Kbps XBP9B-DMST-002
XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, U.FL, 200Kbps XBP9B-DMUT-002
XBee-PRO 900HP (S3B) Point2Multipoint, 900MHz, 250mW, Wire Antenna, 10Kbps XBP9B-DPWT-001
XBee-PRO 900HP (S3B) Point2Multipoint, 900MHz, 250mW, RPSMA, 10Kbps XBP9B-DPST-001
XBee-PRO 900HP (S3B) Point2Multipoint, 900MHz, 250mW, U.FL, 10Kbps XBP9B-DPUT-001
XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, Wire Antenna, 200Kbps, 32K Programmable XBP9B-DMWTB002
XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, RPSMA, 200Kbps, 32K Programmable XBP9B-DMSTB002
XBee-PRO 900HP (S3B) DigiMesh, 900MHz, 250mW, U.FL, 200Kbps, 32K Programmable XBP9B-DMUTB002
AUSTRALIA
XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, Wire Antenna, 200Kbps XBP9B-DMWT-022
XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, RPSMA, 200Kbps XBP9B-DMST-022
XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, U.FL, 200Kbps XBP9B-DMUT-022
XBee-PRO 900HP (S3B) Point2Multipoint, 920MHz (Australia), 250mW, Wire Antenna, 10Kbps XBP9B-DPWT-021
XBee-PRO 900HP (S3B) Point2Multipoint, 920MHz (Australia), 250mW, RPSMA, 10Kbps XBP9B-DPST-021
XBee-PRO 900HP (S3B) Point2Multipoint, 920MHz (Australia), 250mW, U.FL, 10Kbps XBP9B-DPUT-021
XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, Wire Antenna, 200Kbps, 32K Programmable XBP9B-DMWTB022
XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, RPSMA, 200Kbps, 32K Programmable XBP9B-DMSTB022
XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Australia), 250mW, U.FL, 200Kbps, 32K Programmable XBP9B-DMUTB022
BRAZIL
XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, Wire Antenna, 200Kbps (Brazil) XBP9B-DMWT-012
XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, RPSMA Antenna, 200Kbps (Brazil) XBP9B-DMST-012
XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, U.FL Antenna, 200Kbps (Brazil) XBP9B-DMUT-012
XBee-PRO 900HP (S3B) Point2Multipoint, 905/920MHz, 250mW, Wire Antenna, 10Kbps (Brazil) XBP9B-DPWT-011
XBee-PRO 900HP (S3B) Point2Multipoint, 905/920MHz, 250mW, RPSMA Antenna, 10Kbps (Brazil) XBP9B-DPST-011
XBee-PRO 900HP (S3B) Point2Multipoint, 905/920MHz, 250mW, U.FL Antenna, 10Kbps (Brazil) XBP9B-DPUT-011
XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, RPSMA, 200Kbps, 32K Programmable (Brazil) XBP9B-DMSTB012
XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, U.FL, 200Kbps, 32K Programmable (Brazil) XBP9B-DMUTB012
XBee-PRO 900HP (S3B) DigiMesh, 905/920MHz, 250mW, Wire Antenna, 200Kbps, 32K Programmable (Brazil) XBP9B-DMWTB012
SINGAPORE
XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Singapore), 250mW, Wire Antenna, 200Kbps XBP9B-DMWT-042
XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Singapore), 250mW, RPSMA, 200Kbps XBP9B-DMST-042
XBee-PRO 900HP (S3B) DigiMesh, 920MHz (Singapore), 250mW, U.FL, 200Kbps XBP9B-DMUT-042
XBee-PRO 900HP (S3B) Point2Multipoint, 920MHz (Singapore), 250mW, Wire Antenna, 10Kbps XBP9B-DPWT-041
XBee-PRO 900HP (S3B) Point2Multipoint, 920MHz (Singapore), 250mW, RPSMA, 10Kbps XBP9B-DPST-041
XBee-PRO 900HP (S3B) Point2Multipoint, 920MHz (Singapore), 250mW, U.FL, 10Kbps XBP9B-DPUT-041
ANTENNAS
Antenna – 900 MHz, fiberglass base station, 2.1 dBi, N-female. A09-F2NF-M
Antenna – 900 MHz, fiberglass base station, 5.1 dBi, N-female. A09-F5NF-M
Antenna – 900 MHz, fiberglass base station, 8.1 dBi, N-female. A09-F8NF-M

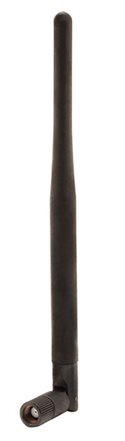

Antenna – 900 MHz, half wave dipole, 2.1 dBi,RPSMA male, articulating. A09-HASM-675

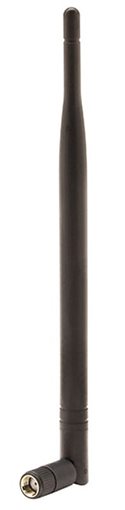

Antenna – 900 MHz, half wave dipole, 2.1 dBi, RPSMA male, articulating. A09-HASM-7
Antenna – 900 MHz, yagi, 8.1 dBi, N-female. A09-Y8NF
Antenna – 900 MHz, yagi, 11.1 dBi, N-female. A09-Y11NF
Antenna – 900 MHz, half wave dipole, 2.1 dBi, RPSMA male. A09-HSM-7
Antenna – 900 MHz, half wave dipole, 2.1 dBi, RPSMA male. A09-HBSM-P5I



Specifications

Hardware Digi XBee-PRO 900HP Digi Programmable XBee-PRO 900HP
Hardware
Processor ADF7023 transceiver, Cortex-M3 EFM32G230 @ 28 MHz
Programmable includes: Freescale MC9S08QE32
Frequency Band 902 to 928 MHz, software selectable channel mask for interference immunity
Antenna Options Wire, U.FL and RPSMA
Performance
RF Data Rate 10 Kbps or 200 Kbps
Indoor/Urban Range 10 Kbps: up to 2000 ft (610 m); 200 Kbps: up to 1000 ft (305 m)
Outdoor/ Line-Of-Sight Range 10 Kbps: up to 9 miles (14 km); 200 Kbps: up to 4 miles (6.5 km) ( w/ 2.1 dB dipole antennas)
Transmit Power Up to 24 dBm (250 mW) software selectable
Receiver Sensitivity -101 dBm @ 200 Kbps, -110 dBm @ 10 Kbps
Features
Data Interface UART (3V), SPI
GPIO Up to 15 Digital I/O, 4 10-bit ADC inputs, 2 PWM outputs
Networking Topologies DigiMesh, Repeater, Point-to-Point, Point-to-Multipoint, Peer-to-Peer
Spread Spectrum FHSS (Software Selectable Channels)
Programmability
Memory N/A 32 KB Flash / 2 KB RAM
CPU/Clock Speed N/A HCS08 / Up to 50.33 MHz
Power
Supply Voltage 2.1 to 3.6 VDC 2.4 to 3.6 VDC
Transmit Current 215 mA 229 mA
Receive Current 29 mA 44 mA
Sleep Current 2.5 uA 3 uA
Regulatory Approvals
FCC (USA) MCQ-XB900HP
IC (Canada) 1846A-XB900HP
C-Tick (Australia) Yes
Anatel (Brazil) Yes
IDA (Singapore) Yes
IFETEL (Mexico) Yes
